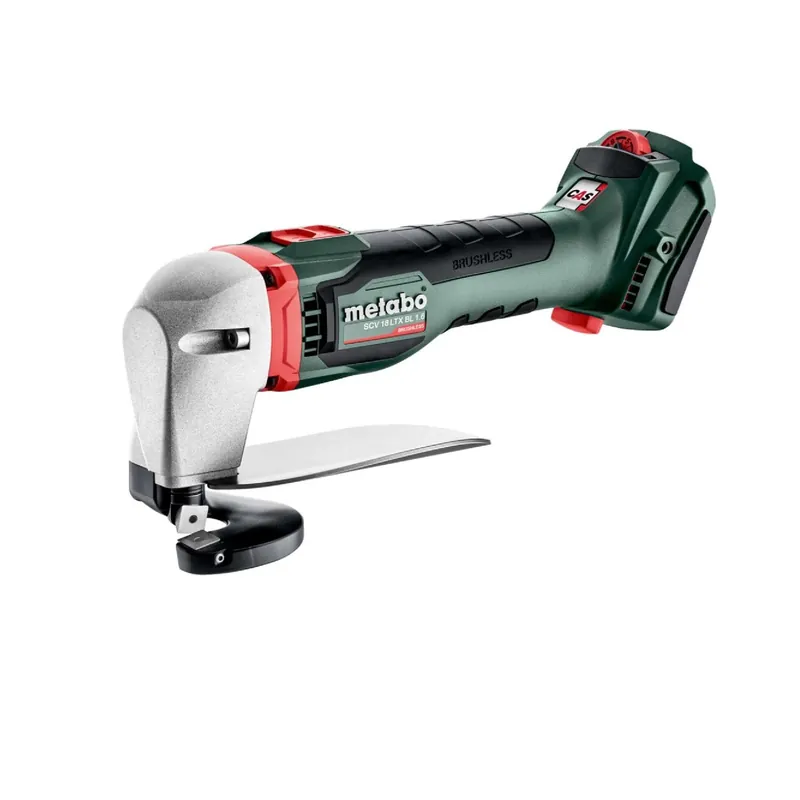

18V cordless sheet metal shear – Metabo SCV 18 LTX BL 1.6

• Particularly handy and maneuverable cordless sheet metal shear for burr-free cutting on site

• Maximum curved cutting capability to conveniently make cuts on narrow rounds from 15 mm

• Fast job execution thanks to efficient Brushless motor

• Continuously adjustable cutting speed to suit the material and job

• Pleasant handling due to low weight, slim handle and switch located on top

• Flexibly adjustable blade distance for different sheet thicknesses

• Economical quadruple-turning blade for maximum cutting quality

• Maximum safety at work with any cutting direction thanks to the large hand guard

• Electronic motor protection against overloads for high longevity

• With metaBOX, the smart solution for transport and storage

• Many brands, one battery system: this product is compatible with all 18 V batteries and chargers from CAS partners: www.cordless-alliance-system.com

Technical Data

Battery type: LiPOWER

Battery voltage: 18 V

Max. steel sheet thickness 400 N/mm²: 1.6 mm

Max. steel sheet thickness 600 N/mm²: 1.2 mm

Sheet metal thickness max. steel 800 N/mm²: 0.7 mm

Max sheet thickness aluminum 250 N/mm²: 2 mm

Number of no-load strokes: 1350 – 4840 /min

Cutting speed: 7 m/min

Starting hole diameter: 27 mm

Minimum bending radius: 15 mm

Weight without battery: 1.4 kg

Weight with battery: 1.8 kg

Vibration

Sheet metal cutting: 7.6 m/s²

Measurement insecurity K: 1.5 m/s²

Noise emission

Sound pressure level: 74 dB(A)

Sound power level (LwA): 85 dB(A)

Measurement insecurity K: 3 dB(A)

Equipment

• 2 reversible blades
• Thickness gauge
• 2 hex wrenches
• metaBOX 145
• without battery, without chargera
