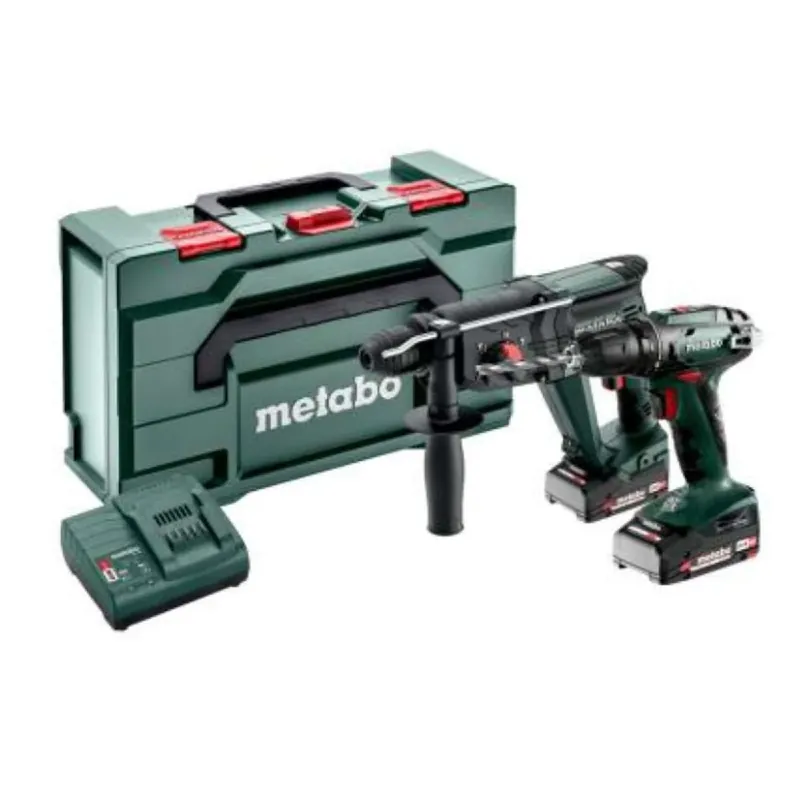

Combo Kit 2.3.2 – Metabo

Features

• Cordless drill-driver BS 18: lightweight and compact drill-driver with an especially short shape for versatile uses

• Cordless combination hammer KH 18 LTX 24: combination hammer with 3 functions: hammer drilling, drilling and chiseling

• Cordless combi hammer KHA 18 LTX: percussion stop device for hammerless drilling and screwdriving

• Roto-stop device for chiseling

• Metabo S-automatic safety clutch: mechanical transmission release when bit locks for safe working

• Batteries with remaining range indicator

• Ultra-M technology for maximum performance, safe charging, optimal energy utilization and high longevity

• 3-year battery warranty thanks to Ultra-M technology

Technical data BS 18 (602207560) Cordless drill-driver

Battery type: LiPOWER

Battery voltage: 18 V

Battery capacity: 2 x 2 Ah

Max. torque (soft screwdriver): 24 Nm

Max. torque (hard screwdriver): 48 Nm

Adjustable torque: 0.5 – 4.5 Nm

Steel drilling Ø: 10 mm

Soft wood drilling Ø: 20 mm

No. no load rpm: 0 – 450 / 0 – 1600 /min

Spindle opening: 1 – 10 mm

Weight without battery: 0.92 kg

Weight with battery: 1.3 kg

Technical data KH 18 LTX 24 (601712850) Cordless combination hammer

Battery voltage: 18 V

Max. single stroke energy (EPTA): 2.1 J

Max. number of strikes: 5200 /min

Concrete drilling Ø with hammer drills: 24 mm

Masonry drilling Ø with core bits: 68 mm

Steel drilling Ø: 13 mm

Ø soft wood drilling: 30 mm

Max. no-load rpm: 0 – 1400 /min

Tool attachment: SDS-plus

Weight without battery: 2.6 kg

Vibration KH 18 LTX 24 (601712850) Cordless combination hammer

Concrete hammer drilling: 11.5 m/s²

Insecure K-measurement: 1.5 m/s²

Chiseling: 7.8 m/s²

Measurement uncertainty K: 1.5 m/s²

Noise emission BS 18 (602207560) Cordless drill-driver

Sound pressure level: 70 dB(A)

Sound power level (LwA): 81 dB(A)

Measurement insecurity K: 3 dB(A)

Acoustic emission KH 18 LTX 24 (601712850) Battery-operated combination hammer

Sound pressure level: 91 dB(A)

Sound power level (LwA): 98 dB(A)

Measurement insecurity K: 3 dB(A)
