TECHNOLOGY TIG 230 DC-HF/LIFT VRD

Overview

TECHNOLOGY TIG 230 DC-HF/LIFT VRD

code 852055Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
– pulse and EASY pulse operation
– TIG regulations: „bi-level“, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency
– THINSPOT function for quick and precise tack welding
– MMA regulations: arc force and hot start
– anti-stick device
– VRD device
– remote control connector
– thermostatic, overvoltage, undervoltage, overcurrent protections.

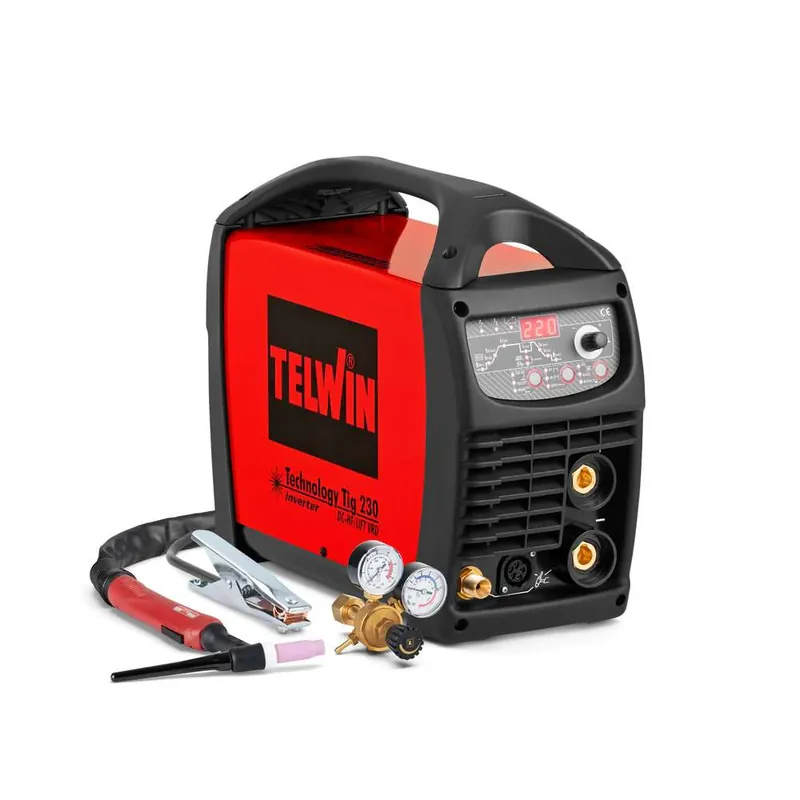

Complete with TIG welding accessories.

Technical data

BSORBED POWER AT 60% 4,1 kW SINGLE PHASE MAINS VOLTAGE 230 V MAINS FUSE 20 A MAINS FREQUENCY 50 / 60 Hz EFFICIENCY 86 % CURRENT RANGE 10 – 220 A POWER FACTOR 0,7 MAX CURRENT 220 @ 30 % A D. USABLE ELECTRODES IN DC 1,6 – 4 mm DC CURRENT 125 A PROTECTION DEGREE IP23 MAX NO LOAD VOLTAGE 95 V DIMENSIONS 43 x 17,6 x 34 cm MAX ABSORBED CURRENT 36 A WEIGHT 14,75 ABSORBED CURRENT AT 60% 26 A EAN CODE 800489796588 8 MAX ABSORBED POWER 6 kW

Accessories

Included Accessories

ARGON GAS BOTTLE IT ADAPTOR:432036TOLEDO 300 WORK CLAMP:712231CABLE 25 MMQ 3 M ATLAS 50MMQ:713504GAS REGULATOR 2 MANOMETERS 12 L\\min:722119ST26 TIG TORCH AX50 4M:742614
