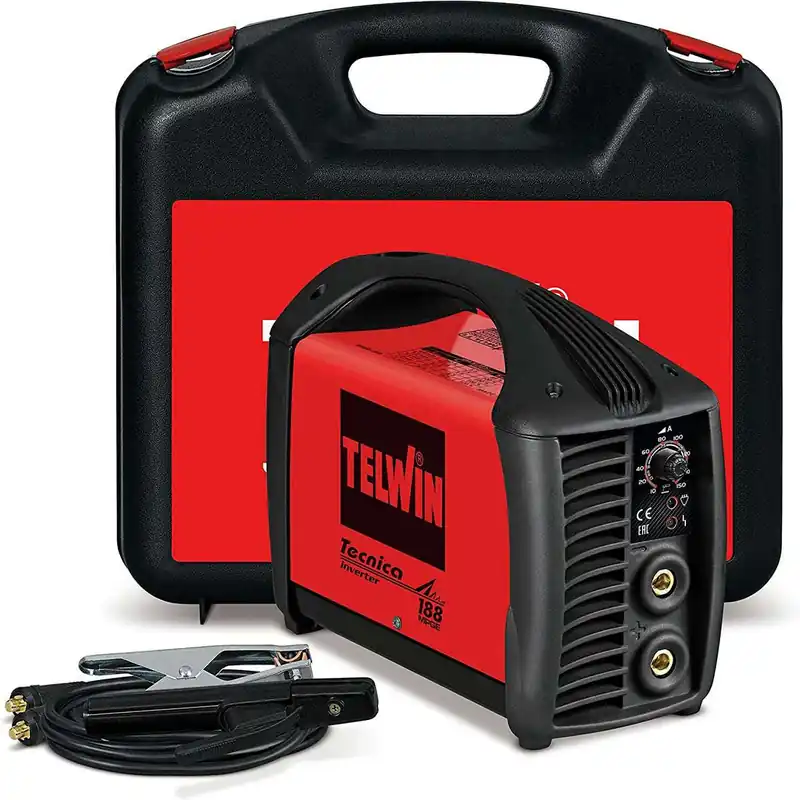

Solange Der Vorrat Reicht Tecnica 188 MPGE 230V Inverter Welding Machine + Carry Case – Telwin – 816122

Overview

TECNICA 188 MPGE

code 816212

Inverter MMA electrode and TIG welding machine in direct current (DC) with scratch striking.

Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Recommended for motorgenerators, this model grants high performance despite power supply instability, thanks to the MPGE multiprotections: control device of the wave form, filter against input peaks, stabilization ofoscillations.
Features:
– compact and light;
– high welding current stability in spite of mains voltage fluctuations;
– arc force, hot start and anti-stick devices;
– thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with MMA welding accessories and plastic carry case.

Technical data

TECNICA 188 MPGE

code 816212MOTORGENERATOR MINIMUM POWER 6 kW SINGLE PHASE MAINS VOLTAGE 230 V MAINS FUSE 16 A MAINS FREQUENCY 50 / 60 Hz EFFICIENCY 86 % CURRENT RANGE 10 – 150 A POWER FACTOR 0,7 %USE (20°C USE) 88% @ 150A D. USABLE ELECTRODES IN DC 1,6 – 4 mm MAX CURRENT 140 @ 25 % A PROTECTION DEGREE IP23 DC CURRENT 95 A DIMENSIONS 38 x 42 x 17 cm MAX NO LOAD VOLTAGE 75 V WEIGHT 7 MAX ABSORBED CURRENT 28 A EAN CODE 800489782871 8 ABSORBED CURRENT AT 60% 17 A PIECES/PALLET 36 pz/pallet MAX ABSORBED POWER 4,2 kW PIECES/PALLET – B 30 pz/pallet B ABSORBED POWER AT 60% 2,6 kW

Accessories

Included Accessories
